Matching Network Controllers

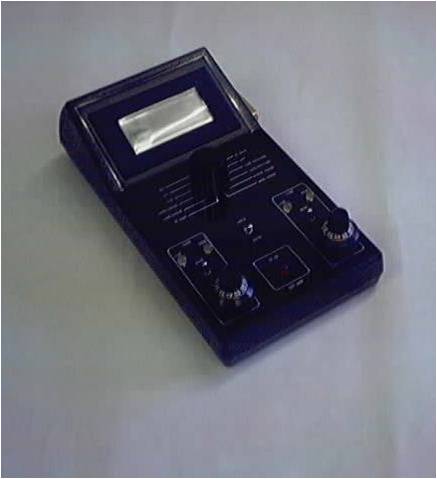

Hand Held Controller                                                                                               19" Rack Mounted Controller





The matching networks, whilst being stand alone in nature, can be either monitored and controlled remotely.  To that end we have designed a series of external controllers for our matching networks.  All versions of our controllers have the capability of the following controls and monitors.



Function

Monitor

Control

Function 1

+ DC Voltage



Function 2

-DC Voltage



Function 3

Load Error



Function 4

Tune Error



Function 5

RF Amps



Function 6

DC Bias



Function 7

VPP



Function 8

Tune Position



Function 9

Load Position



Function 10

Phase Error



Function 11

Mag Error



Function 12

Load Lower Limit



Function 13

Load High Limit



Function 14

Tune Low Limit



Function 15

Tune High Limit



Function 16



Tune Auto/Manual Switch

Function 17



Load Auto/Manual Switch

Function 18



Tune Manual Posotion Pot

Function 19



Load Manual Position Pot
